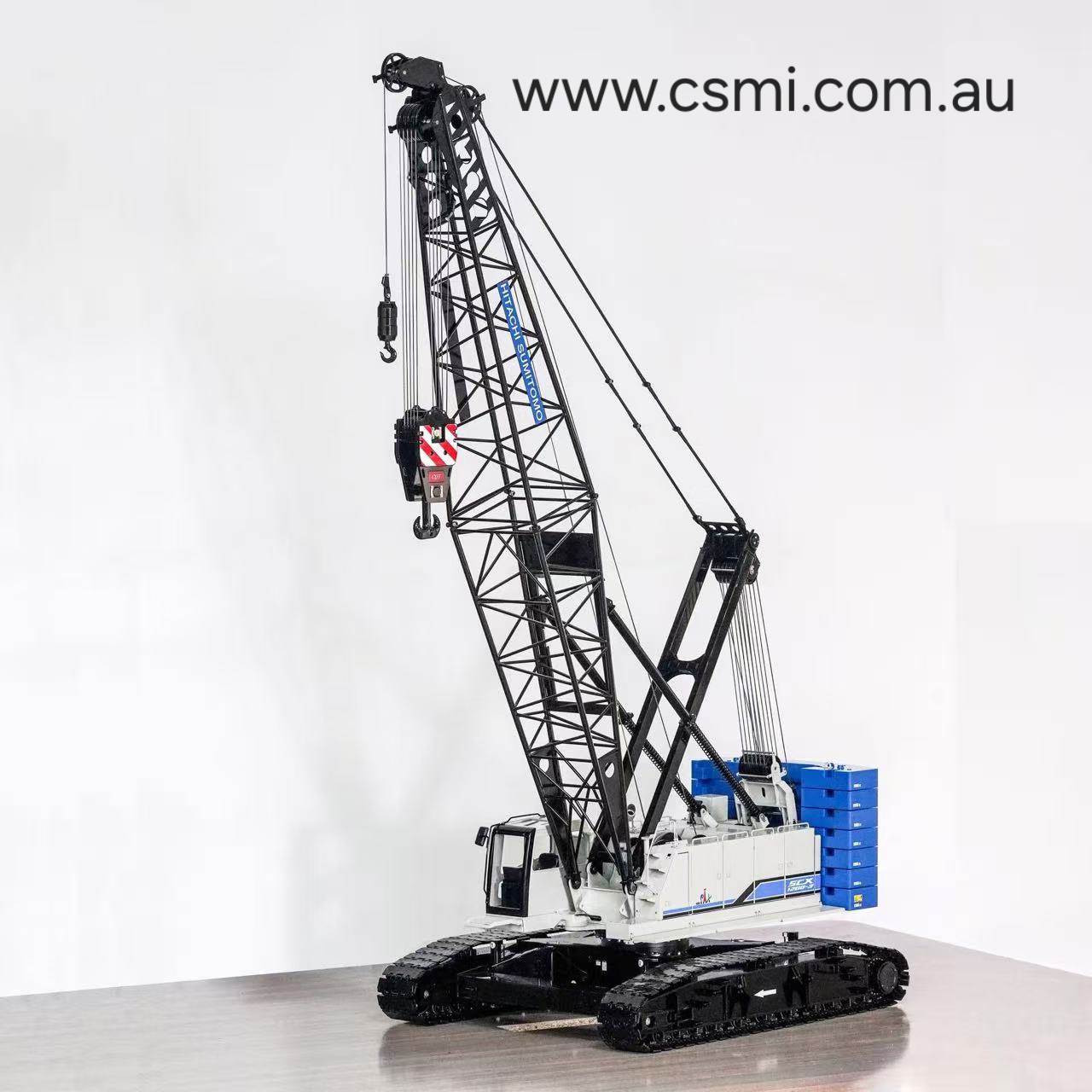

| Scale | |
| 1/14 RC Scale | Crawler cranes |
- Stock: In Stock
- Model: 1390005571551
- EAN: 1390005571551
This offer ends in:
Available Options
More from this brand
This model come complete ready to run.





Scale: 1/14
Total Weight (kg): 64.5
Lifting Capacity /kg: 45
Height (with cab folded): 215mm
Chassis Width /mm: 458
Ground Clearance /mm (with outriggers extended): 78
Track Height /mm: 99.5
Overall Length /mm (Without boom): 637.5
Upper car body Width /mm (with side platforms unfolded): 310
Maximum Chassis Width /mm (with platforms): 514
Cab Roof Height /mm: 272
Track Length /mm: 566
Overall Length /mm (with lattice boom lowered): 1614
Counterweight Swing Radius /mm: 354.3
Hydraulic Pump: 500ml/min, within 4MPa
Number of Hydraulic Cylinders: 8
Chassis Lifting Drive: Hydraulic Cylinder
Winch Drive: Planetary Gear Reduction + Brushless Motor
Support Frame Ground Clearance /mm: 32
Boom Luffing Angle /degrees: 103
Single Cylinder Thrust /kg: 17
Rated Pressure /MPa: 3
Max Pressure /MPa: 4
The model come with the following
ESC
Motor
Servo
Light System
Sound System
Hydraulic System
FlySky PL18 LITE Remote Controller and Receiver
