Electrical Slip rings

Electrical Slip rings for Excavators .

Therotary unionis designedas an electricallinkforendlessrotation andelectrical connection.

Example: power supplied to tracks from car body

Technicaldata:

maximum: 250 U / min

maximum current: 10 amps per line

Maximum voltage: 24 volts

4 core wire

Maximum height: 50 mm (without cable)

Maximum width: 44 mm

Mounting hole circle base: 35 mm

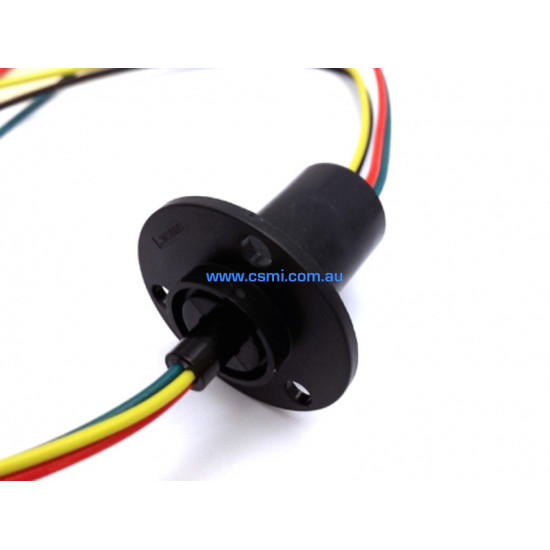

other dimensions: see the picture
