Variable voltage distribution circuit (VVDC)

This module is designed to distribute lower voltage from the battery to other services.

Example : Sound moudule , Light module, BEC, ESC and other services your model needs

Specification:

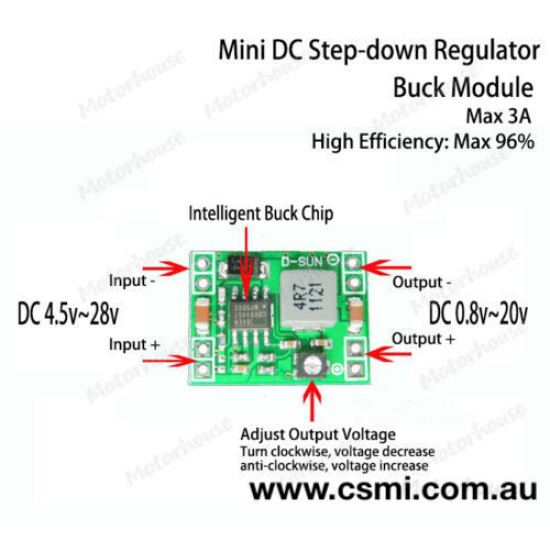

Model Name: Adjustable DC-DC step-down module
Input Voltage: 4.5V ~ 28V
Output voltage: 0.8V ~ 20V
Output Current: 3A (Max)
Conversion efficiency: 96% (maximum)
Output Ripple: <30mV
Switching frequency: 1.5MHz (highest) typically 1MHz
Operating Temperature: -45 ℃~ +85 ℃
Size: 22mm * 17mm * 4mm (L * W * H)


Application areas:

DIY mobile power, monitor power supply, embed regulator, camera power supply, car power, communications equipment supply, etc.



Package Include:

1 * Adjustable Step Down Micro Module 3.3v 5v 12v DC Voltage Regulator
