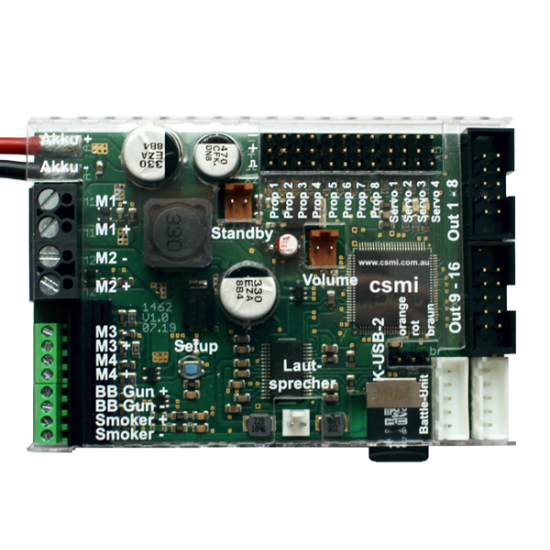

Dual Speed Controller with sound SFR-1-D 1:14 or 1:16 scale

Specifications

Scale
1/14 RC Scale	ESC

Dual Speed Controller with sound SFR-1-D 1:14 or 1:16 scale

Stock: In Stock
Model: 1390005572732

CSMI

Based on 0 reviews. - Write a review

$602.48

Ex Tax: $500.40

Available Options

Freight Must be selected

Int Freight (+$42.00)

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Quick WhatsApp

NOTE THIS IS A COMPLETE PACKAGE ALL YOU NEED

USB WITH SOUND SOFTWARE
SPEAKER
VOLUME KNOB
ALL WIRING HARNESS

NOTE : SOUND TEACHER CD IS INCLUDED

The SFR-1-D at a glance:

Allround module: combination of double speed controller, sound module and light control unit
Suitable for all types of RC models with two motors
For brushed DC motors
Supply voltage: 6 - 18 V / Max. motor current: 30 A
Powerful BEC with 5,6 V, 3 A
Inclusive 700 sound files for all type of models
Powerful built-in amplifier for optimal sound quality
8 proportional inputs to control sound, speed controller, light and servo functions
Sum signals S-Bus / SUMD / i-Bus available
16 switching outputs for LEDs, lamps, relays, etc.
2 mini speed controller for auxiliary drives
4 programmable servo outputs to control additional movements
Extra outputs for smoke generator and BB gun / IR battle-unit
Adjustable speed control functions: load regulation, mass and steering inertia and different brake functions

Technical data

hide

Supply voltage (U_b):	6 – 18 V DC
Power consumption:	Quiescent current: approx. 1 mA Standby current (sound, motor and outputs off): approx. 80 mA
Motor current M1 + M2:	max. 30 A continuous current, 60 A short time (1 minute)
Motor current M3 + M4:	max. 2 A continuous current, 3 A short time (1 minute)
BEC voltage:	5,6 V
BEC current:	max. 3 A continuous current, 5 A short time (10 seconds)
Proportional inputs:	8 channels (1,000 - 2,000 ms) Supported protocols: PPM / PCM (1,000 - 2,000 ms) Sum signal S-Bus (max. 16 channels) Sum signal SUMD (max. 16 channels) Sum signal i-Bus (max. 16 channels) Nautic / Multiswitch / Multikanal / EMS
Servo outputs:	4 outputs (1,000 - 2,000 ms)
Output for smoke generator:	max. 3 A
Output for BB gun:	max. 3 A
Switching outputs:	16 outputs (npn – open collector), max. 1,5 A per output, the total current of all outputs is not allowed to exceed 3,0A
NF amplifier:	20 W
Loudspeaker:	4 - 8 Ohm
Volume setting:	With extra poti (100 kOhm) and/or by the radio
Memory for sound files:	Micro-SD-card (1 to 64 GB)
May. length of sound:	approx. 180 minutes per 1 GB
Supported sound files:	WAV-format, 8/16 Bit, Mono/Stereo, 22/44 kHz
Sound output:	16 Bit, Mono, 22/44 kHz
Number of possible sounds:	5 running steps/gears (internally in up to 255 steps accelerated) 8 change sounds between the running steps/gears Turn on noise, turn off noise, starting noise, stopping noise, idling noise, brake noise, reverse engine noise, curve squeal, flashing lights sound 30 additional sounds (for example via prop.-channels) 8 random sounds (random generator) 30 tracks for WAV-Player
Random sound generator:	Times between 1 to 999s adjustable
Additional ports:	Programming interface for data cable
Protection features:	Short circuit protection at motor output stage Short circuit protection at switching outputs Short circuit protection at BEC Temperature monitoring Battery voltage monitoring Protection while switching on power supply Failsafe for proportional inputs
Cables for connection:	For battery: 2 x 2,5 mm², length approx. 25 cm (with Deans T female connector)
Permissible ambient temperature:	0 – 60° C
Permissible relative air humidity:	Max. 85 %
Size:	88 x 60 x 25 mm (with SD card: 88 x 63 x 25 mm)
Weight:	100 g
