FCM HAMMAR 160 S 1:14-2 sideloader
- Stock: In Stock
- Model: 1390005573142
$4,562.00
Ex Tax: $3,800.00
Available Options
More from this brand
$80.00
Ex Tax:$65.00

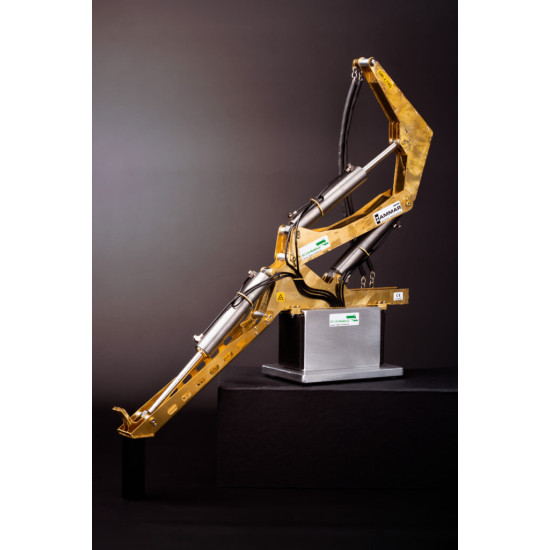

The FCM HAMMAR 160 S 1:14-2 side-loader is a true-to-nature model of the original side-loader.
We have had the pleasure of cooperating with Hammar Maskin AB on the development of the side-loader and the model is approved by Hammar Maskin AB.
Suitable for trucks, trailers and construction vehicles, scale of 1:14.
The construction kits are produced from MS63 brass, so that the material itself is protected from corrosion while the parts can either be glued or soldered together.
The following special tools are included in the kit:
- 2 pcs. ø1 mm. drill, which is used as a control
- 2 pcs. ø4.8 mm. drill, which is used as a control
- 1 pcs. ø5 mm. drill, which is used as a control
- 1 pcs. M1.4 mm. hand-operated tap
- 1 pcs. ø5H7 hand reamer
- 1 pcs. 3.5x1 mm. flat file
The following adhesive shall be used as a minimum:
- Loctite No. 496 (Instant glue)
- Loctite No. EA3430 (Two-component glue)
- Loctite degreasing agent No. SF7063
- Loctite No. 222 (Weak screw lock)
- As an alternative to glue, the parts can be soft soldered with tin.
- The construction kit contains 2 pcs. FCM HAMMAR 160 S 1:14-2 side loaders
- Dimension in mm.: H/192 x W/178 x D/37 mm.
- Weight per side loader without oil is approx. 900 g.
- The construction kit contains hydraulic fittings and hoses from the valve blocks as far as/back to the side loaders
- The model is designed for a working pressure of 12 bar.
- The lifting capacity of each side loader is 2,700 g.
- The model can be glued or tin soldered.
- Tags: Hammar , Slide unloader , Container , Container unloader , 160s ,
